A full-width opening connects the living room to a 1.30 m-deep addition, with a rooflight above and the bathroom behind.

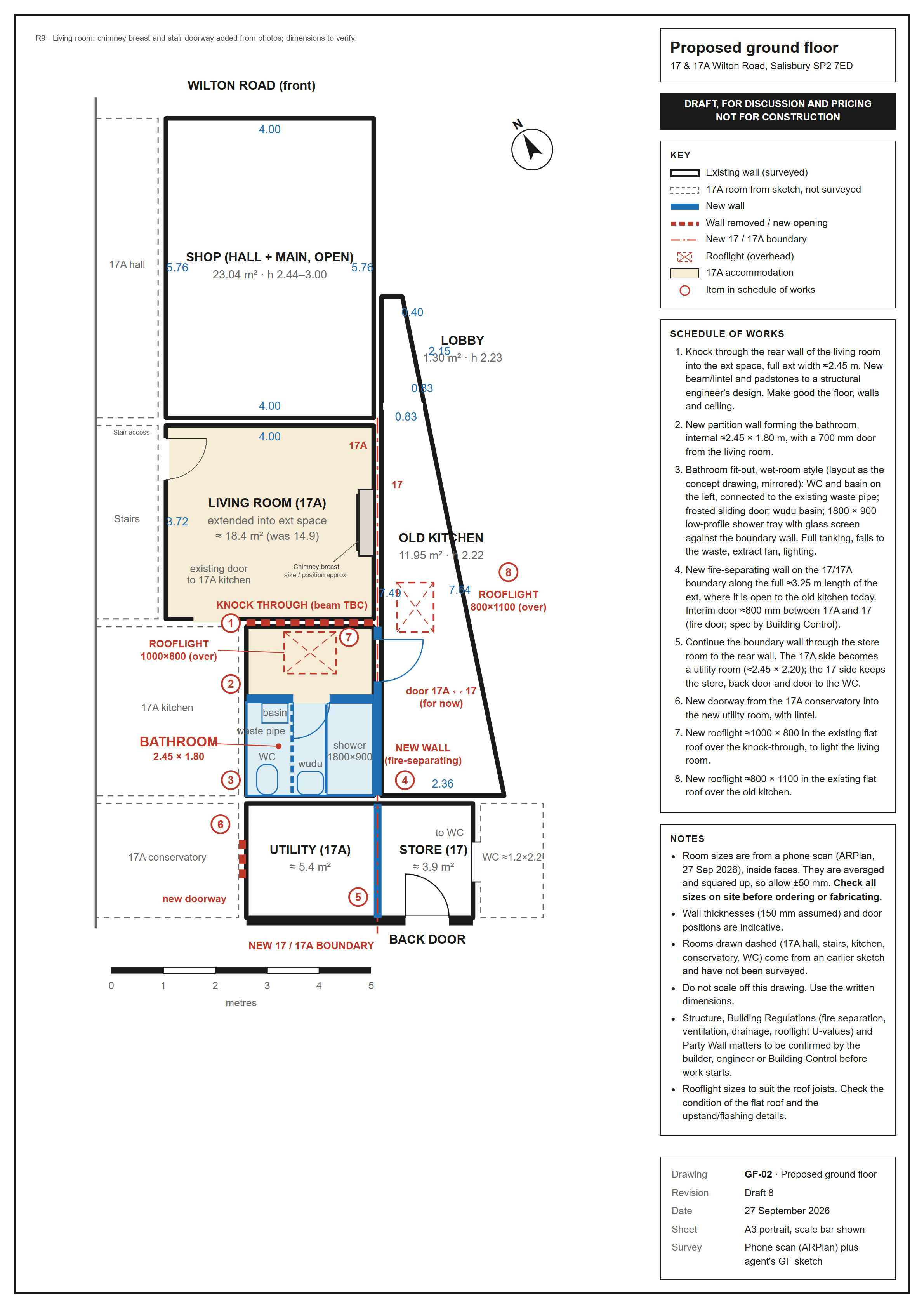

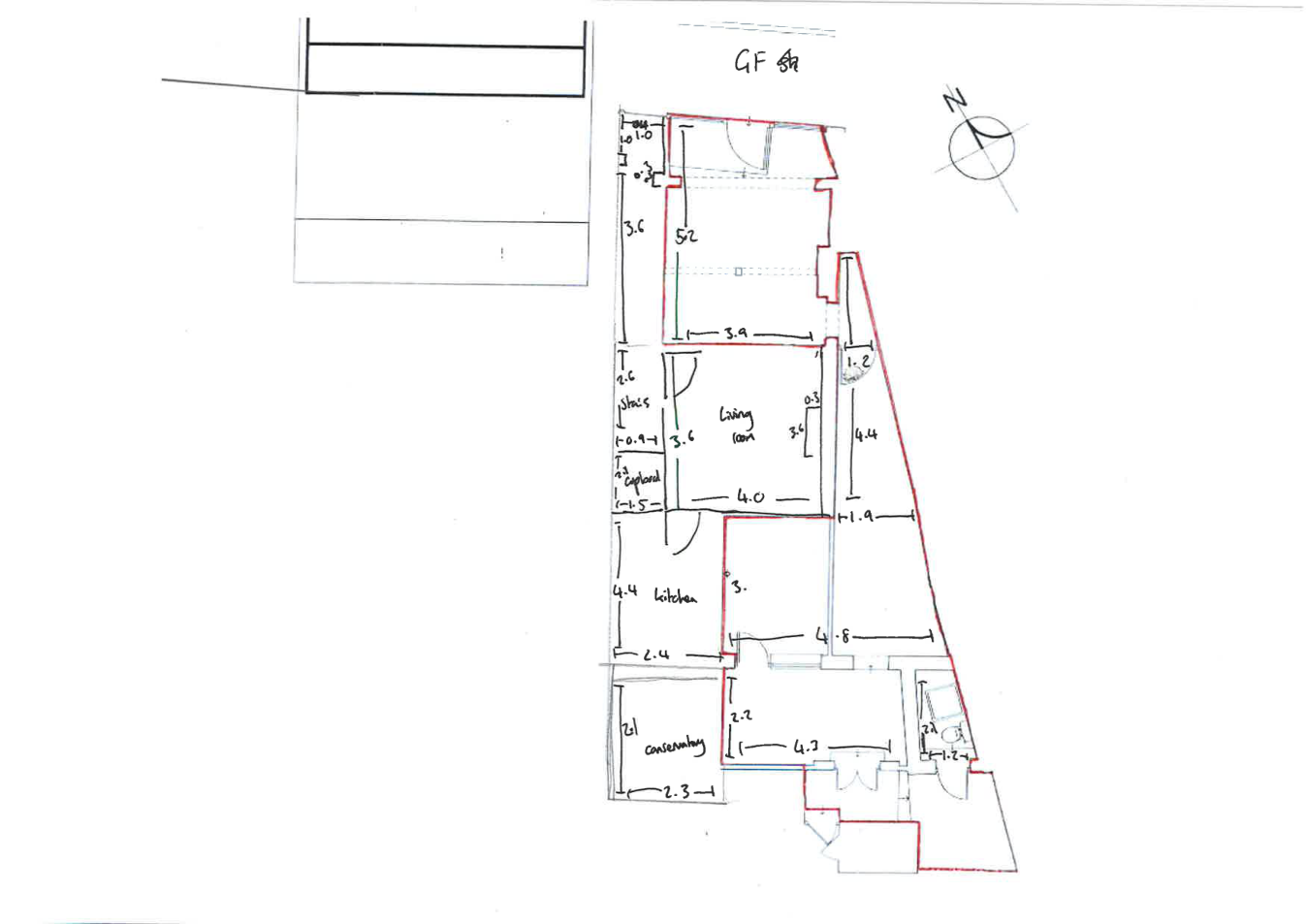

Dimensions and arrangement follow your draft 9 drawings, with the living-room photo corrections. The 3D model illustrates the living room and extension; the drawings show the whole ground floor.
About this proposal
The living room now includes its chimney breast and fireplace, stair-access doorway and furnishings based on your photos. Chimney width (shown about 1.30 m), projection (about 0.30 m), and stair-door position remain approximate pending measurement. No people are included.
The bathroom sits within the ext space. Its front partition leaves a usable addition to the living room beneath the rooflight. The shower is on the right; the WC and basin are on the left, with the wudu basin between.
Phone-scan dimensions are approximate. Verify wall build-ups, finished clearances, rooflight position and structural support on site. Lighting in 3D is illustrative, not a daylight calculation.
The builders’ pack contains the full layout, utility/store division, boundary wall, second rooflight and numbered schedule of works.
